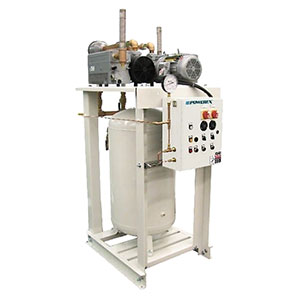

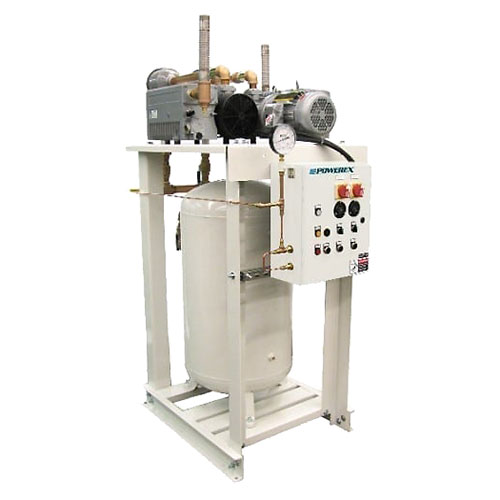

Medical Lubricated Vane Open Systems Click for Larger View

Call us TODAY at 727-835-0662 or
Toll Free at 800-761-4298

Request A Quote!

Powerex® Medical Lubricated Vane Open Systems


The lubrication from the oil in this pump results in higher efficiencies, lower operating temperatures and lower sound levels than oil-less designs. The lubricated vane design also results in the highest ultimate vacuum levels of all the technologies.

Benefits & Features
  • Extremely reliable
  • Highest ultimate vacuum levels
  • Long vane life
  • No water and sewage costs
  • Expandable configurations for skid mounted systems up to quadplex
  • Fully compliant with NFPA 99
  • Manufactured in ISO 9001:2015 certified facilities

Duplex Tankmount Model: VVTD0153, VVTD0203, VVTD0303, VVTD0403, VVTD0503, VTD0153, VTD0203, VTD0303, VTD0404, VTD0504, VTD0755, VTD1006
Duplex Tank Over Model: VPDT0402, VPDT0502, VPDT0752
Duplex Model: VPD0504, VPD0754, VPD1004, VPD1505, VPD2005, VPD2505
Duplex Expandable Model: VPD0504-EX3, VPD0754-EX3, VPD1004-EX3, VPD1505-EX3, VPD2005-EX3, VPD2505-EX3
Triplex Model: VPT0504, VPT0754, VPT1004, VPT1505, VPT2005, VPT2505
Triplex Expandable Model: VPT0505-EX4, VPT0755-EX4, VPT1005-EX4, VPT1505-EX4, VPT2005-EX4, VPT2505-EX4
Quadplex Model: VPQ0505, VPQ0755, VPQ1005, VPQ1505, VPQ2005, VPQ2505

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
SCFM @
19" Hg
Tank(gal)
BTU/Hr
dB(A)
Level
FLA @
208V
FLA @
230V
FLA @
460V
Spec
Sheet
Duplex Tankmount
VVTD0153
1.5(2)
7
80 V
3,251
63
11.0
10.8
6.4
VVTD0203
2(2)
11
80 V
4,335
66
13.2
12.8
7.4
VVTD0303
3(2)
17
80 V
6,503
66
18.8
17.6
9.8
VVTD0403
5(2)
25
80 V
10,838
68
29.6
28.0
15.0
VVTD0503
5(2)
37
80 V
10,838
74
30.6
27.8
14.9
VTD0153
1.5(2)
7
80 H
3,251
63
11.0
10.8
6.4
VTD0203
2(2)
11
80 H
4,335
66
13.2
12.8
7.4
VTD0303
3(2)
17
80 H
6,503
66
18.8
17.6
9.8
VTD0404
5(2)
25
120 H
10,838
68
29.6
28.0
15.0
VTD0504
5(2)
37
120 H
10,838
74
30.6
27.8
14.9
VTD0755
7.5(2)
52
200 H
16,256
80
44.0
42.8
22.4
VTD1006
10(2)
77
240 H
21,675
81
54.8
53.2
27.6
Duplex Tank Over
VPDT0402
5(2)
25
60 H
10,838
68
29.6
28.0
15.0
VPDT0502
5(2)
37
60 H
10,838
74
30.6
27.8
14.9
VPDT0752
7.5(2)
52
60 H
16,256
80
44.0
42.8
22.4
Duplex
VPD0504
5(2)
37
120 V
10,838
72
31.6
27.8
14.9
VPD0754
7.5(2)
52
120 V
16,256
80
44
42.8
22.4
VPD1004
10(2)
77
120 V
21,675
81
54.8
53.2
27.6
VPD1505
15(2)
111
200 V
32,513
83
82.8
76.8
39.4
VPD2005
20(2)
137
200 V
43,350
84
110
106
54
VPD2505
25(2)
168
200 V
54,188
85
138
126
64
Duplex Expandable To Triplex
VPD0504-EX3
5(2)
37
120 V
21,676
75
46.4
40.7
21.3

VPD0754-EX3
7.5(2)
52
120 V
32,512
83
65
63.2
32.6

VPD1004-EX3
10(2)
77
120 V
43,350
84
81.2
78.8
40.4

VPD1505-EX3
15(2)
111
200 V
65,026
86
123.2
114.2
58.1

VPD2005-EX3
20(2)
137
200 V
86,700
87
164
158
80

VPD2505-EX3
25(2)
168
200 V
108,360
88
206
188
95

Triplex
VPT0504
5(3)
74
120 V
21,676
75
46.4
40.7
21.4
VPT0754
7.5(3)
104
120 V
32,512
83
65
63.2
32.6
VPT1004
10(3)
154
120 V
43,350
84
81.2
78.8
40.4
VPT1505
15(3)
222
200 V
65,026
86
123.2
114.2
58.1
VPT2005
20(3)
274
200 V
86,700
87
164
158
80
VPT2505
25(3)
336
200 V
108,376
88
206
188
95
Triplex Expandable To Quadplex
VPT0505-EX4
5(3)
74
200 V
32,514
77
61.2
53.6
27.8

VPT0755-EX4
7.5(3)
104
200 V
48,768
85
86
83.6
42.8

VPT1005-EX4
10(3)
154
200 V
65,025
86
107.6
104.4
53.2

VPT1505-EX4
15(3)
222
200 V
97,539
88
163.6
151.6
76.8

VPT2005-EX4
20(3)
274
200 V
130,050
89
218
210
106

VPT2505-EX4
25(3)
336
200 V
162,564
90
274
250
126

Quadplex
VPQ0505
5(4)
111
200 V
32,514
77
61.2
53.6
27.8
VPQ0755
7.5(4)
156
200 V
48,768
85
86
83.6
42.8
VPQ1005
10(4)
231
200 V
65,025
86
107.6
104.4
53.2
VPQ1505
15(4)
333
200 V
97,539
88
163.6
151.6
76.8
VPQ2005
20(4)
411
200 V
130,050
89
218
210
106
VPQ2505
25(4)
504
200 V
162,564
90
274
250
126
