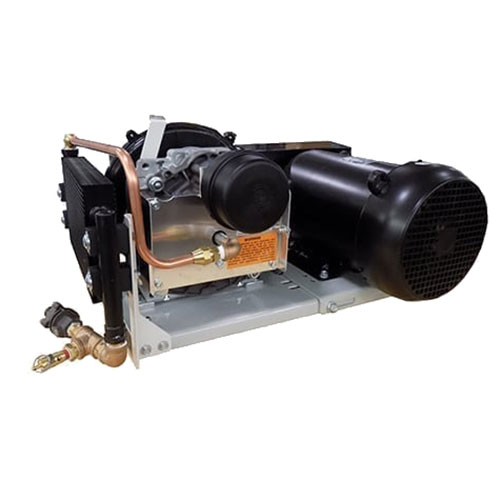

Powerex® Transportation Scroll Belt Drive Basemount


The compressor unit includes belt driven operation of an oil-less rotary scroll compressor with air-cooled construction and absolutely no oil needed for operation, as well as a TEFC 60 Hz tri-voltage 3 phase motor.



Benefits & Features
  • Oil-less scroll pump technology
  • Low maintenance
  • Energy efficient
  • Manufactured in ISO 9001:2015 certified facilities

Model: SBB030700, SBB030700HP, SBB050700, SBB050700HP

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
System HP
SCFM @
100 PSIG
Tank(gal)
dB(A) Level
FLA @
208V
FLA @
230V
FLA @
460V
Spec
Sheet
SBB030700
3
8.7
115
70
9
8.1
4.1
SBB030700HP
3
7.1
145
70
9
8.1
4.1
SBB050700
5
15.2
115
71
14.2
12.8
6.4
SBB050700HP
5
12.1
145
71
14.2
12.8
6.4
